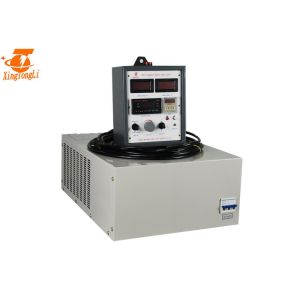

Name: 12v 500a Three Phase Protable Igbt Electroplating Power Supply
Brand: xingtongli
Price: 1 USD

Ask Lasest Price
Brand Name :	xingtongli
Model Number :	GKD12-500CVC
Certification :	ISO CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500units/month
Delivery Time :	3~5days

Add to Cart

GENRAL SEPCIFICATION FOR 12V 500A igbt electroplating power supply

AC Input	voltage	220v/380v/415v/450v
	frequency	50/60hz
	phase	3 phase
output	current	0~500a optional
	voltage	0~12v adjustable
	frequency	40khz
	effiencicy	≥89%
	voltage stability	≤1%
	current stability	≤1%
	Stabilization mode	Current stabilization/Voltage stabilization (Switchable easily)
	adjustment range	Voltage/Current from 0-100% continuously adjustable within rated range
control part	cooling system	air cooling /water cooling/mixed water & air cooling
	control method	local panel control/remote control box/ PLC
	Display contents	Voltage meter/Current meter/Working/Over temp/Error, etc..
	Protection method	Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc.
use environment	Operating temperature	-20-50℃
	Ambient temperature	30-65℃
	Ambient humidity	≤90%
	Working loading	Full capacity operation, more than 1,000 meters above sea level, reduced load operation

OPTIONAL FEATURE:12v 500a three phase protable igbt electroplating power supply

Reduced Ripple	Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point
Polarity Reversing	manual reverse or automatic reverse
Digital Ampere-Hour / Minute Meter	Totalizing, preset counter and solution metering configurations are available to meet process and EPA requirements.
Computer Interface	allow isolated connections of a rectifier to a computer or PLC. The computer or PLC can send voltage and/or current control signals to the rectifier, and in return receive signals from the rectifier proportional to the output voltage and/or current. Available in Analog, Modbus, Profibus, ethernet and DeviceNet.
Variable Timer	Timers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle

Our Services

Complete pre & after service for this 125V 150A DC anodizing PLC control air cooling igbt rectifier

Pre-Sales Service

* Inquiry and consulting support within 12 hours.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the Eelectroplating machine.

* Engineers available to service machinery overseas.

Installation

1,Placing 15v 2000a high frequency switch model DC Industrial electrolytic rectifier and keep the body stability; ensure good ventilation.

2,Checking electrolysis rectifier out cover if loosing.

3,Connecting shell to ground to prevent static electricity.

4,Conecting the AC input wire

5,Connecting the DC output copper bars

6,Connecting the remote control box,if local control ,skip this step

7,Turn on air switch, then the fan starts to rotate and the power indicator light.

8,Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.

9,Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.

10,Disconnect the air switch, turn off the power
