small portable IGBT DC plating rectifier 200A 12V
Specification
| SPECIFICATIONS FOR GKD12-200CVC |
| Input AC | 220V±10% | 1phase | 50/60Hz |
| Output DC | Volt | 0~12V Adjustable |
| Current | 0~200A Adjustable |
| Power | 2.4KW |
| Efficiency | >85% |
| output Frequency | 40KHz fixed |
| Protection | Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection |
Working Condition
(Temperature) | -10℃~50℃ | Control mode | Panel control
Remote control |
| Net weight | 15kg | Working mode | Constant Voltage(CV)
Constant Current(CC) |
| Dimension(mm) | 49*39*19cm | Cooling way | air cooling |

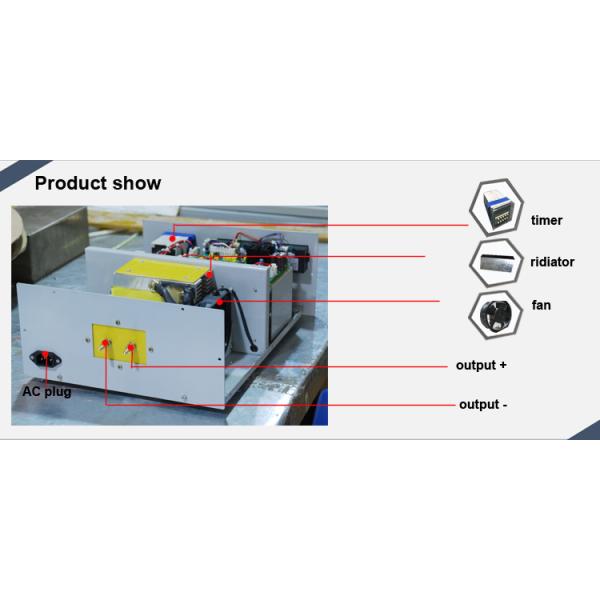

PCB IGBT plating DC rectifier 12v 100a Picture:
How to choose PCB plate plating rectifier ?
To select PCB plate plating rectifier has three requirements:
1, Meet the specifications required by plating process, including
dc power supply power, waveform index, adjustable current and
voltage range, etc.;
2, PCB plate plating power supply itself reliability power supply,
which mainly refers to structure reasonable, security and line
features, cooling methods;
3, DC power supply cost performance.
Determine what kind of PCB plate plating rectifier suitable for
you:
Determining plating type and and what kind of dc power supply the
plating tanks shall use is the implementation and the first
important work in electroplating production. There are 2 methods to
determine suitable dc power supply in the actual plating
production:
One: according to plating liquid solution to determine volume
current density;
Two: calculated according to the plating area to get plating
current density per unit.
The so-called volume current density, it is based per liter of
plating solution allowed to pass maximum current to adjust entire
plating tank current intensity, to determine the maximum power
supply output and the conventional output.
small portable IGBT DC plating rectifier 200A 12V advantages
adopts amorphous core,increase transformer efficiency,reduct the
transformer temperature rise,cut the rectifier weight,improve the
power supply stability, reliability
Core & Schottky diode:
core capacity expanded 1.5 times
schottky diode expands 4 times
Board :
all control boards did anticorrosion treatment with imported three
defense lacquer
IGBT:
IGBT capacity expanded 3 times,make the power supply more reliable
| 1, Placing rectifier and keep the body stability; ensure good
ventilation. |
| 2, Checking anodizing rectifier out cover if loosing. |
| 3, Connecting shell to ground to prevent static electricity. |
| 4, Conecting the AC input wire |
| 5, Connecting the DC output copper bars |
| 6, Connecting the rectifier remote control box,if local control
,skip this step |
| 7, Turn on air switch, then the fan starts to rotate and the power
indicator light. |
| 8, Clockwise rotation adjustment button, voltmeter degree
increases, working indicate light lighting. |
| 9, Adjust knob to maximum, then the voltmeter should indicate the
rated voltage, current meter indicates the load volume accordingly. |
| 10, Disconnect the air switch, turn off the rectifier |
produce process :
From the beginning of the raw material to the selection, to the
assembly, and finally commissioning. We will enforce the standards
strictly. Before package, 24V 125A dc single output switching power
supply with CE will be check again to ensure that it works normally.
