500KW switch mode dc power supply 750VDC output
In many cases, hydrogen is the only solution to decarbonization and
is expected to play a key role in this transition. Expanding green
hydrogen is critical to achieving net zero emissions. Green
hydrogen made by water electrolysis process will be added to power
as an important energy carrier, because it can be made from
renewable energy safely and is actually pollution-free. For us, the
purpose of this rhyme is to promote a better world. By creating
solutions in hydrogen, we can help customers decarbonize, from
transportation to steel production, while reducing energy
consumption and costs.
I. Technical Data Sheet
| Model | TL750-500CVC |
| AC Input | three phases 480VAC |
| Input Voltage Range | 480VAC±15% |
| Input frequency | 50Hz/60Hz |
| Output voltage | 0~750VDC |
| Output current | 0~680A |
| Output Power | 500KW |
| Voltage Stabilization | ≤±1V |
| current stabilization | ≤±1A |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Display Format | 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V |
| Current Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Remote Adjustment | (Analog control: Voltage adjustable ):0-5VDC;(Current
adjustable):0-5VDC |
| Remote Display | (Analog control: Voltage adjustable ): 0-5VDC;(Current
adjustable):0-5VDC |
| Output Over-Voltage Protection | Built-in O.V.P. protection, protection limited value is rated +5% |
| Output Over Load Protection | Overload, current limit, constant current output |
| Over Temperature Protection | Built-in O.T.P. protection, Protection value 85℃±5% heat sink
temperature |
| Voltage Setting | 10-turn precision potentiometer |
| Current Setting | 10-turn precision potentiometer |
| Output Polarity | Output Positive(+) negative(- ) Can be grounded at will |
| Heat Dissipation Way | water cooling |
| Work Conditions | Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH |
| Storage Conditions | Temperature:-20℃~70℃; Humidity: 10%~90%RH |
| Machine Dimension | L950*W876*H1860(MM) |
| Net Weight/Gross Weight | 750KG |
2. FEATURE:
1. Output voltage:0-750V,Current optional:0-680A.
2. Utilize PWM modulation,High gain amplifier circuit design, core
components, all imported, to ensure long-term full load operation
is stable and reliable.
3. Voltage and current preset, the panel comes with preset buttons,
which can preset voltage and current values.
4. Perfect protection function, can set output overvoltage,
overcurrent, overtemperature, turn off output protection, short
circuit protection.
5. Intelligent, can be connected with a PC to form a PC monitoring
intelligent power supply
6. RS232/RS485 digital interface,0-10V/4-20mA analog interface,
MOUDBUS-RTU standard communication protocol.
7. Can custom for you.

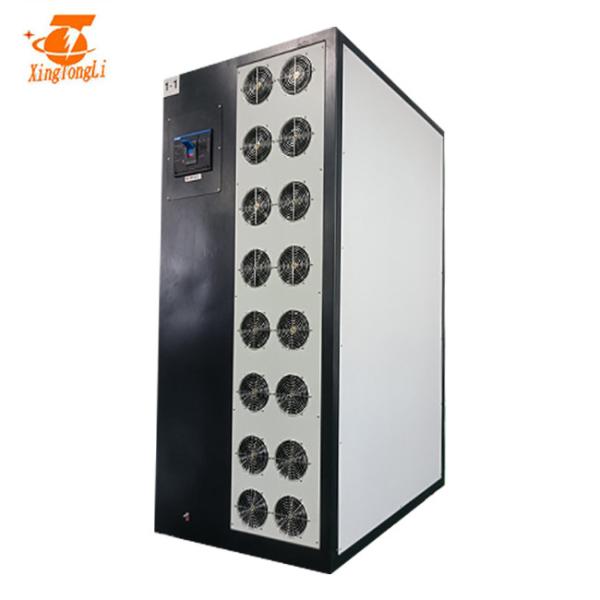

3,POWER SUPPLY DETAIL
4,POWER SUPPLY APPLICATION
Electroplating, Electrolysis, Polishing, Water Treatment, capacitor charging, aging of electronic components, ion
implantation, laser, scientific experiments, etc. Optional
features: Non-standard slow start High voltage cable of extra
length for higher stability.
